Steel Timber by Msafe

M70 Formwork Beams

M70 Formwork Beams are steel timber formwork beams used in construction to support concrete during casting of slabs, walls and columns, replacing traditional wooden battens. Made with a pre-galvanised rectangular steel pipe frame combined with high-density pine wood, M70 beams offer higher load-bearing strength, greater reuse value and better moisture resistance than conventional timber formwork — making them a preferred choice among formwork beam manufacturers and suppliers across India.

Why M70 Formwork Beams Outperform Traditional Timber

Precision-engineered strength, built to last

Manufactured using advanced Italian technology, every beam features a solid, gap-free core that delivers dependable strength across repeated use cycles — a key reason contractors are switching from wood to M70 Steel Timber.

•Precision engineered using advanced Italian technology

•Solid core construction with no internal gaps

•Suitable for slabs, beams & columns

•High strength and durability

•Excellent reuse value

•Strong screw-holding capacity

•Moisture content below 5%

•High density (~600-700 kg/m³)

•3-layer cross-battened structure

•Allowable concrete pressure 60kN/m

•Sizes of steel timber: 1.2, 1.5, 1.8, 2.9, 3.0, 3.60m

•Weight per mtr: 3.6kg

Physical Properties

Engineered to handle real construction loads

Ultimate Moment Capacity

3.5 kN-m

Ultimate Shear Strength

8.0 kN

Application Areas

One formwork beam system, multiple casting applications

Designed as a versatile Steel Timber Formwork solution, M70 beams are equally effective across:

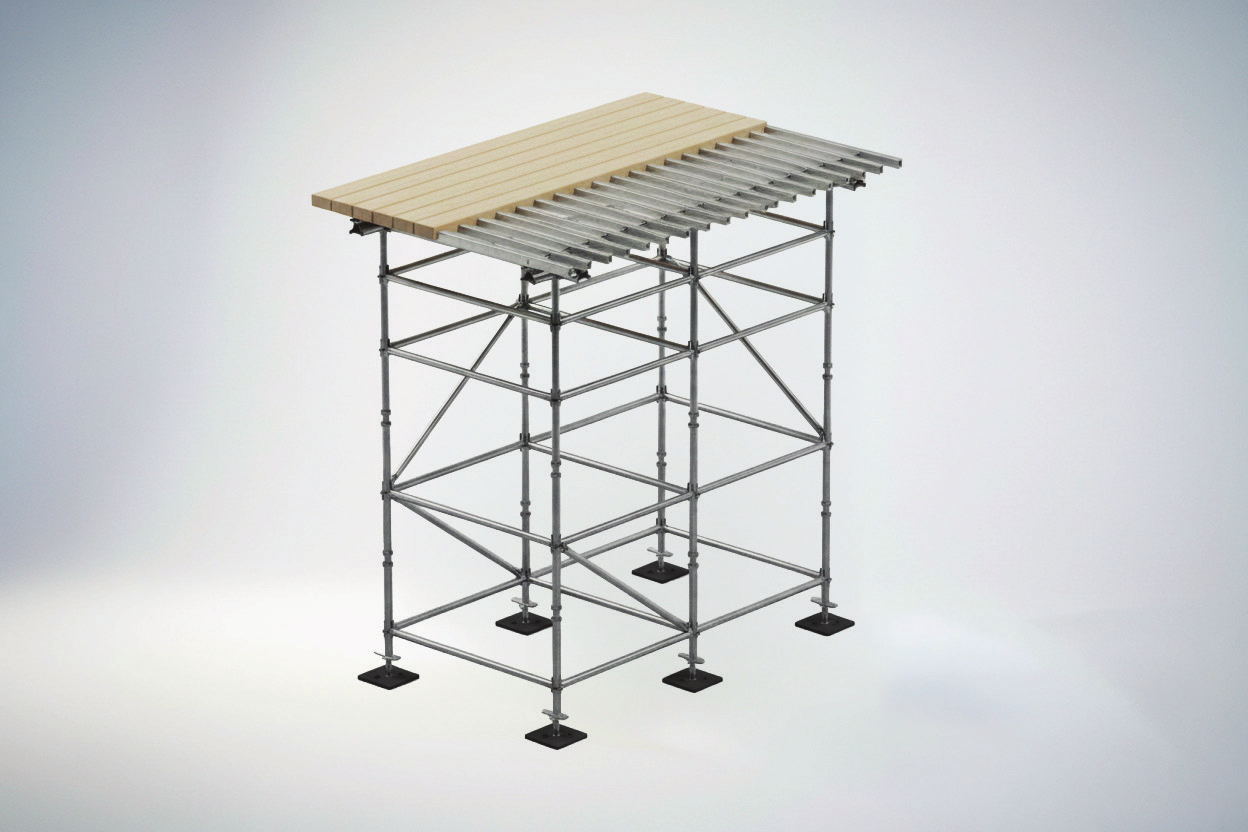

Slabs

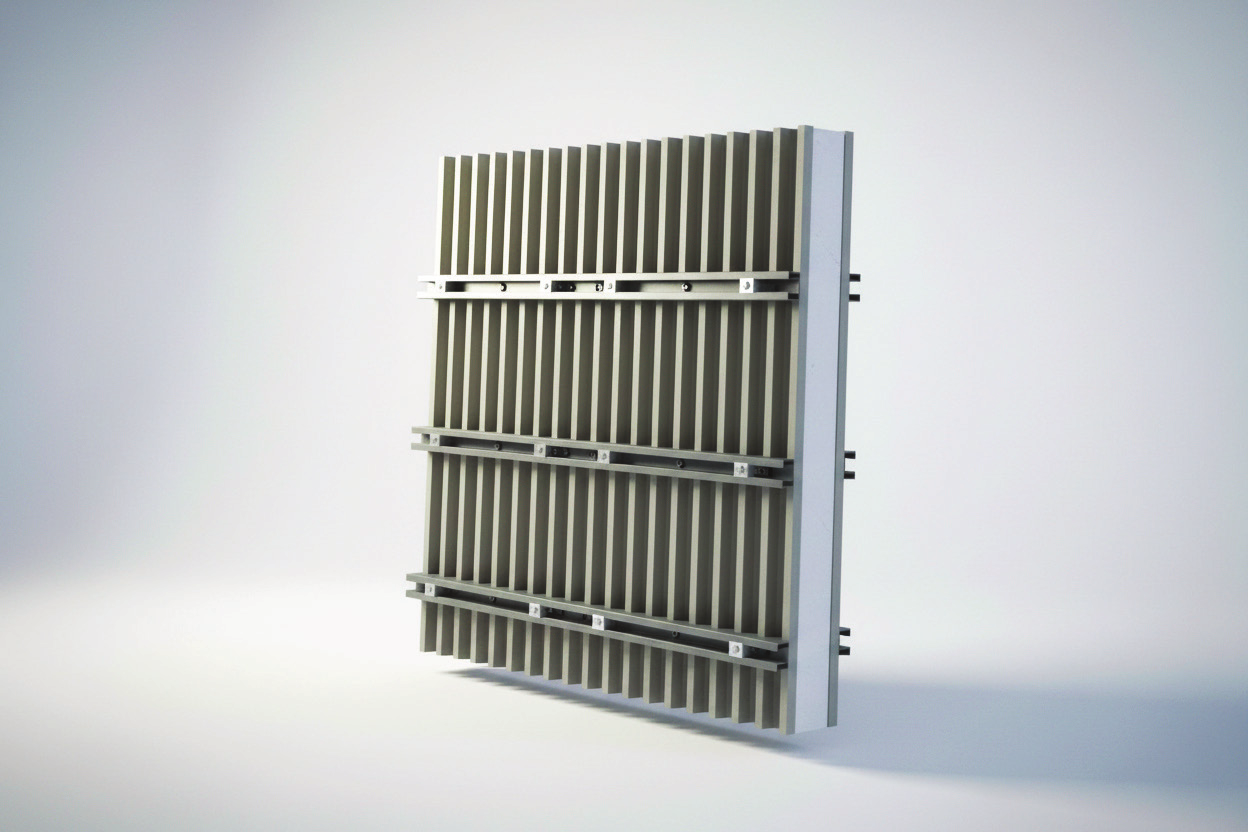

Wall

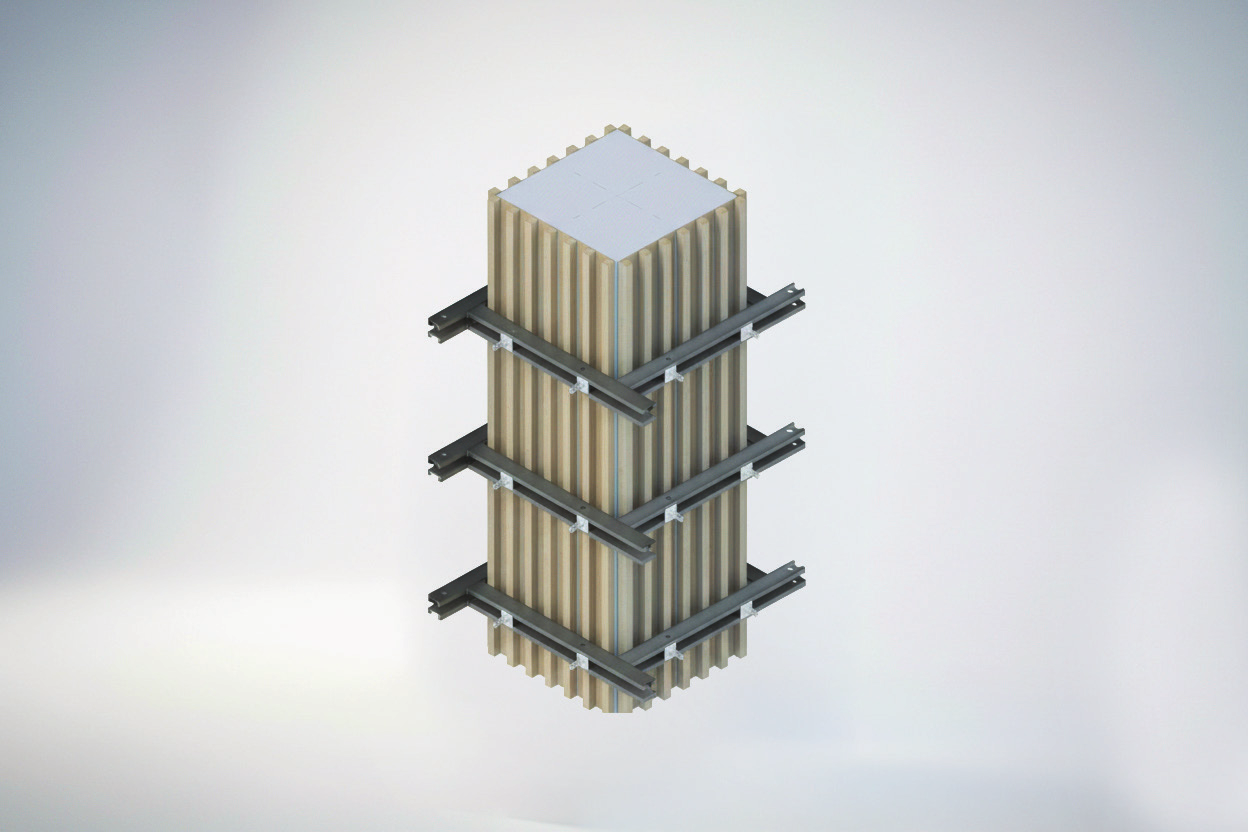

Columns

Specifications

What goes into every M70 steel timber beam

As an established Formwork Beam Manufacturer, we build every M70 beam using carefully sourced materials for consistent quality:

Pre-Galvanised Iron Pipe: Pre galvanised YST 210 rectangular pipes with 2mm thickness provide higher strength to the product.
Best quality German, Australian and New Zealand pine wood.
Custom sizes available on request — one reason project teams across India choose us as their preferred Formwork Beam Supplier.

Available Sizes

70 x 50mm
50 x 50mm

Available Surface Finish

Pre Galvanised
